COWSAR Countertop Ice Maker Troubleshooting Guide

The COWSAR Countertop Ice Maker Troubleshooting Guide is a comprehensive resource designed to help users quickly identify, understand, and resolve common issues that may affect the performance of their ice maker. Whether you’re dealing with warning indicators, water leaks, unusual noises, slow ice production, or poor ice quality, this guide provides clear explanations and step-by-step solutions tailored to real-world problems.

With practical maintenance advice and easy-to-follow instructions, it helps ensure reliable operation, extended appliance lifespan, and the everyday convenience of fresh ice at home, in the office, or while traveling.

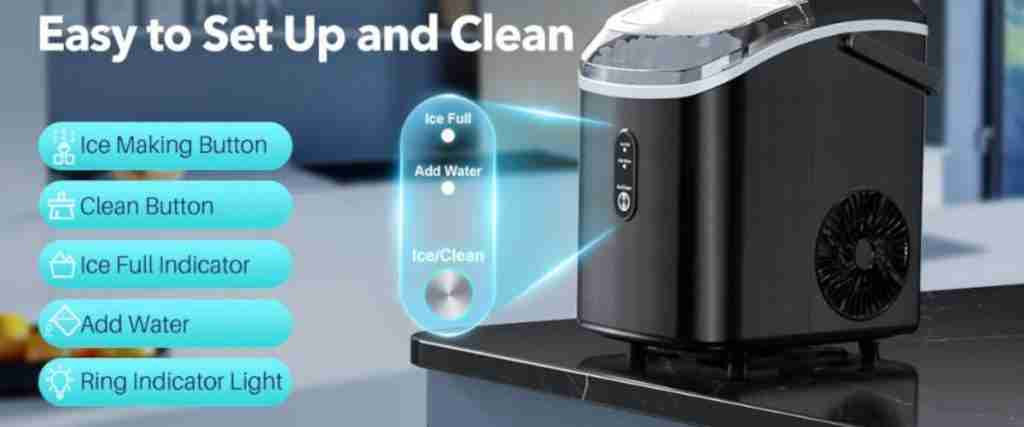

Control Panel Overview

Troubleshooting COWSAR Countertop Ice Maker

The COWSAR Countertop Ice Maker Troubleshooting Guide is designed to help users quickly identify and resolve common issues with their ice maker. By following these straightforward instructions, you can ensure your appliance operates efficiently, delivering high-quality ice whenever needed.

Troubleshooting Common Issues

“Add Water” Indicator Turns On

Cause: Lack of water in the reservoir.
Solutions:

• Stop the ice maker by pressing the “ON/OFF” button.
• Fill the water reservoir to the recommended level.
• Restart the unit by pressing the “ON/OFF” button again.

“ICE FULL” Indicator Turns On

Cause: Excess ice cubes in the storage bin.
Solution:

• Remove some of the ice cubes to make room for further production.
• Monitor the ice level regularly to avoid triggering the indicator.

No Ice Cubes Inside

Possible Causes and Solutions:

• Obstruction in the ice storage:
  • Check for and remove any obstacles inside the ice storage area.
  • Clean the inner walls of the ice storage to ensure proper operation.

Ring Indicator Light Flashes Red

Possible Causes and Solutions:

• High ambient or water temperature:
  • Ensure the appliance operates in an environment with a temperature below 90°F.
  • Use cooler water in the inner tank (7°C–32°C recommended).
• Refrigerant liquid leakage:
  • Restart the ice-making program by pressing the “ON/OFF” button twice.
  • If the issue persists, consult a qualified technician for verification and repair.
• Broken cover motor or blocked cooling system pipe:
  • Seek professional assistance for diagnosis and repair.

Ice Production Is Too Slow

Possible Causes and Solutions:

• Blocked hot air outlet:
  • Ensure there is at least 15 cm of ventilation space around the hot air outlet.
• High water temperature in the tank:
  • Use water with a temperature between 7°C and 32°C.
• Refrigeration system malfunction:
  • Have the system inspected and repaired by a certified technician.

Water Leakage

Possible Causes and Solutions:

• Drain plug not properly in place:
  • Ensure the drain plug is securely fitted in its position.
• Loose pipe joint:
  • Contact a technician to check and tighten the pipe joint if necessary.
• Worn-out seal:
  • Replace the seal with the assistance of a qualified technician.

Operating Instructions for COWSAR Countertop Ice Maker

Follow these step-by-step instructions to ensure the proper setup, operation, and maintenance of your COWSAR Countertop Ice Maker.

Preparation

Unpack and Inspect

• Remove the exterior and interior packaging.
• Check that all accessories are included. If any parts are missing, contact customer service.
• Remove all tape and accessory parts from inside the unit.

Clean the Interior

• Wipe the interior with lukewarm water and a soft cloth.

Placement

• Place the ice maker on a level countertop, away from direct sunlight and heat sources like stoves or radiators.
• Ensure at least 6 inches of space between the back and sides of the unit and the wall.
• Allow the refrigerant fluid to settle for two hours before plugging in.
• Ensure the power plug is directly accessible.

Water Warning

• Only use potable drinking water in the unit.

Assembling the Handle

• Align the handle with the mounting hole on the machine.
• Attach and secure it firmly to the machine.

Electrical Safety

• Use a grounded 110-120V, 60Hz outlet for operation.
• Do not tamper with the grounding plug. Consult a certified electrician for power or grounding concerns.
• Contact customer service if the power cord is damaged.

Using Your Ice Maker

Startup Procedure

1. Remove the ice basket.
2. Pour potable water into the reservoir (maximum of 0.3 gallons).
3. Replace the ice basket.
4. Plug in the machine. The ring indicator will light red.
5. Press the “Ice/Clean” button to start making ice.
6. Long press the “Ice/Clean” button to initiate automatic cleaning.

CLEANING AND MAINTENANCE GUIDE

Proper cleaning and maintenance of your COWSAR Countertop Ice Maker ensures optimal performance and hygiene. Follow these step-by-step instructions to clean and maintain your unit.

Cleaning Instructions

1. Initial Cleaning Procedure

• Before using the ice maker for the first time or after a long idle period, run the cleaning procedure.
• Ensure the water drain cap is securely inserted to prevent malfunctions.
• Press and hold the “ON/OFF” button for 5 seconds until the ring indicator light flashes white.
• The cleaning process will run automatically for 15 minutes and exit upon completion.
• To interrupt the procedure, press the “ON/OFF” button again.

2. Post-Cleaning Steps

• Remove the top cover and ice basket.
• Rinse the main and secondary water reservoirs with clean water.
• Move the appliance to the edge of a steady surface.
• Place a container underneath the unit, remove the drain cap, and let the dirty water drain completely.
• Reinsert the drain cap securely.

Tips:

• Remove the top back cover by gently pulling up the front transparent cover.
• Replace the water in the reservoir every 24 hours to maintain hygiene.
• If not in use, drain all water and dry the reservoir thoroughly.

System Cleaning and Sanitizing

1. Preparing for Cleaning

• Unplug the unit for safety.
• Remove the bottom drain cap and drain water into a sink.

2. Daily Cleaning

• Mix one teaspoon of household bleach with five cups of water.

3. Monthly Cleaning for Mineral Deposits

• Use white vinegar instead of the bleach solution.
• Pour the vinegar solution into the water reservoir up to the “MAX” level.
• Run the cleaning function for 5 minutes, then unplug the unit and let the solution sit for 12+ hours.

Rinsing and Finishing

1. Plug in the unit and press the “ON/OFF” button for 5 seconds to run the 15-minute cleaning cycle.
2. After the cycle ends, unplug the unit, remove the drain cap, and drain the cleaning solution.
3. Repeat the rinsing process with fresh water for two cycles.
4. Secure the drain cap after rinsing.
5. Refill the reservoir with fresh water and restart the ice-making process by pressing the “ON/OFF” button.

Preventative Maintenance Tips

• Regularly clean the ice maker to avoid buildup of debris and odors.
• Regularly clean the interior with diluted detergent and warm water.
• Rinse thoroughly and drain water by unplugging the drain cap at the front bottom.
• Clean the exterior with a mild detergent and warm water.
• Dry the interior and exterior with a clean, soft cloth.
• Use clean, filtered water to prevent scale and mineral deposits.
• Ensure proper ventilation around the appliance to maintain efficient cooling.
• For long-term storage, drain water completely and ensure the unit is dry.

FAQs for COWSAR Countertop Ice Maker Troubleshooting Guide

Why is the “Add Water” indicator on?

• The water reservoir is empty. Fill it with potable water and restart the unit.

What does the “ICE FULL” indicator mean?

• The ice storage is full. Remove some ice cubes to continue operation.

Why isn’t the machine making ice?

• Check for blockages, clean the ice storage area, and ensure the water temperature is within 7°C–32°C.

Why is the ring indicator light flashing red?

• The ambient or water temperature is too high. Lower the temperature or consult a technician if the issue persists.

What should I do if ice production is too slow?

• Ensure the hot air outlet is not blocked and maintain proper ventilation (15 cm clearance).

Why is there water leaking from the unit?

• Check if the drain plug is securely in place. If not, tighten it.

How do I clean the ice maker?

• Press the “ON/OFF” button for 5 seconds to run the cleaning cycle. Rinse thoroughly after the process.

What should I do if the machine has refrigerant issues?

• Restart the ice-making program. If the problem persists, contact a qualified technician.
